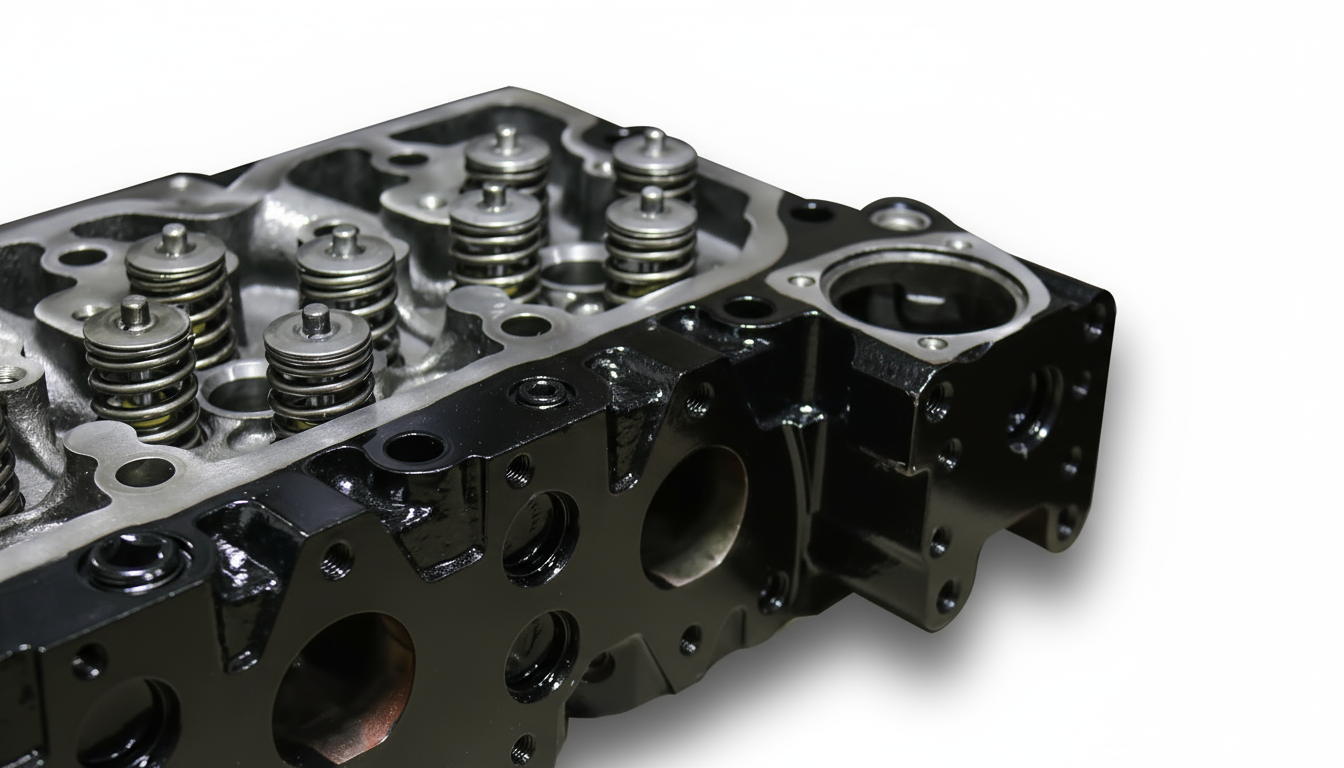

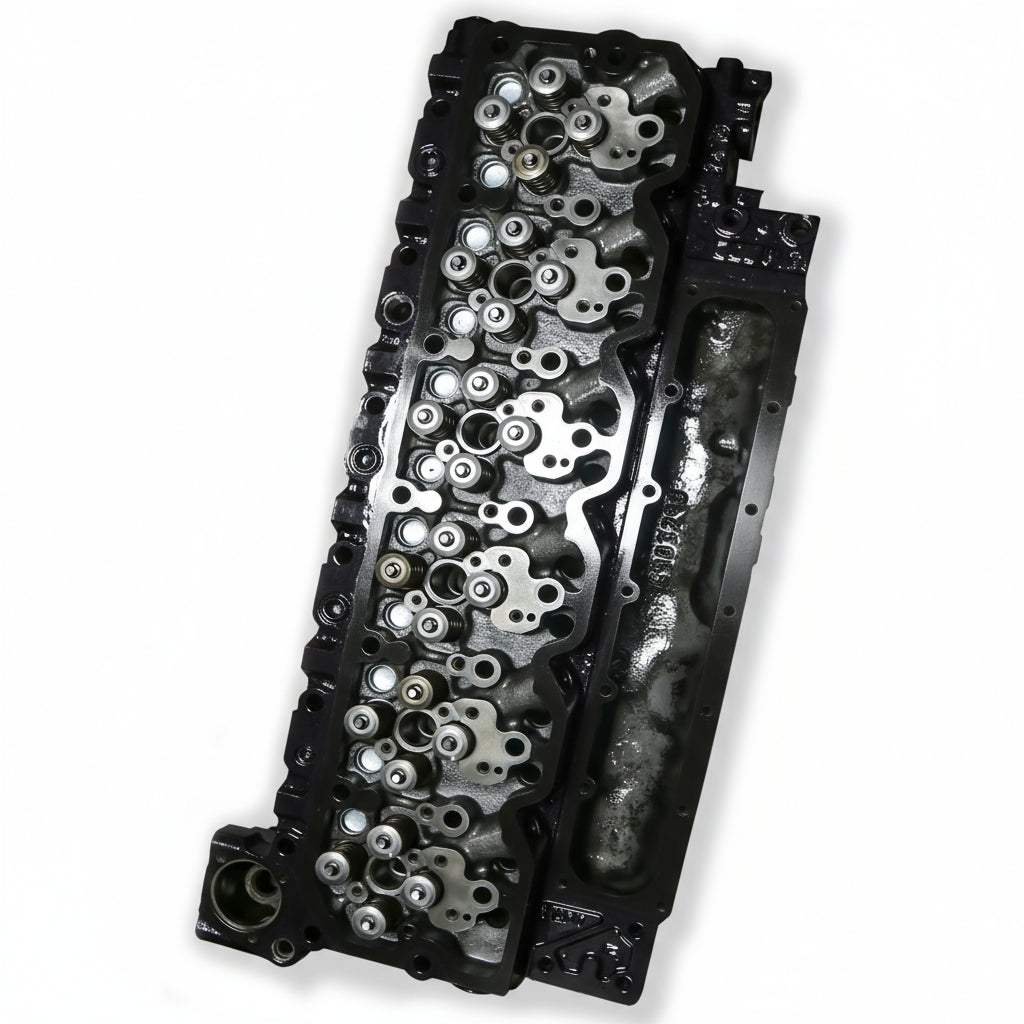

1998 - 2002 ISB Stage 1 24v Cummins Performance Head

ISB Stage 1 24v Cummins Performance Head

Elevate your engine's performance with our ISB Stage 1 24v Cummins Performance Head. Designed to enhance power without the added cost and complexity of an aftermarket intake, this performance head combines the best of our industry-leading remanufactured cylinder heads with advanced features for superior performance.

Key Features:

• Enhanced Valve Springs: Equipped with 105-pound valve springs for improved performance.
• 5 Axis Port Job: Precision porting that retains the factory intake plenum, increasing intake flow from approximately 155 CFM stock to 220 CFM.
• Performance Benefits: Increases low-end performance, reduces boost pressure, and lowers EGTs, allowing more fuel to be burned for greater power output.
• Thread-In Soft Plugs: Installed under the valve cover for enhanced reliability.

Detailed Process:

• Head Options: Choose to use your own head or one of our head cores.
• Disassembly: The head is disassembled and all soft plugs are removed.
• Cleaning and Blasting: Thorough cleaning and blasting to ensure a pristine surface.
• Crack Check: Performed to ensure structural integrity.
• New Bronze Guides: All new bronze guides are installed for durability.
• Heavy Duty Seats: Extra large seats placed on both intake and exhaust sides.
• 5 Axis CNC Porting: Advanced CNC porting with the stock intake shelf in place for optimal airflow.
• High Performance Valve Job: Precision valve job performed to enhance performance.
• Resurfacing: The head is resurfaced to meet exact specifications.
• Painting: Professionally painted for a durable finish.
• Assembly: Assembled with all new valve seals, soft plugs, and HD springs.
• Pressure Checking: Valves and coolant passages are pressure checked to ensure top quality.

*Cores must be in good condition with no cracks and must be rebuildable. D&J Precision Machine will inspect your core upon arrival to determine its suitability for rebuilding.

Experience the next level of performance with our ISB Stage 1 24v Cummins Performance Head.
